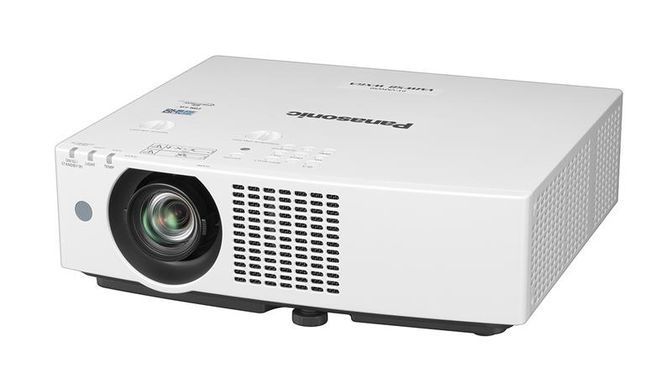

| Модель | PT-VMW50 |
| Технология: | 3LCD |
| Разрешение: | 1280 × 800 (WXGA) |
| Яркость: | 5 000 Lm |
| Контраст: | 3,000,000:1 |
| Оптический трансфокатор (зум): | 1,6 x |
| Проекционное отношение: | 1.09-1.77:1 |
| Фокусировка: | f=15.30–24.64 мм |
| Сдвиг линз (ручной): | V= +44% 0% H=±20% |
| Источник света (Вт, срок работы): | Laser Diode, 20000 часов (Нормальный режим) |
| Энергопотребление (Вт): | 360 Вт |
| Вход: | COMPUTER 1 IN (D-Sub 15 х 1), COMPUTER 2 IN (D-Sub 15 х 1), VIDEO IN (Pin jack х 1), HDMI x 2, AUDIO IN (M3 stereo mini jack x 2), AUDIO IN (Pin jack x 2), USB x 1, SERIAL IN (D-sub 9 pin x 1), DIGITAL LINK/LAN (RJ-45 × 1), LAN (RJ-45 x 1) |
| Выход: | COMPUTER 1 OUT (D-Sub 15 x 1), VARIABLE AUDIO OUT (M3 stereo mini jack x 1), USB (USB connector(type A) x 1 DC OUT) |
| Коррекция трапецеидальных искажений: | V= ±35° H= ±35° |
| Шум (дБ): | 37 |
| Масса (кг): | 7.2 |
| Габариты (ШхВхГ мм): | 399 x 133 x 348 мм |
| Комплектация: | Panasonic проектор PT-VMW50 (белый) |
| Пулт ДУ с батарейками | |
| Шнур питания | |
| Руководство по эксплуатации на CD | |
| Крышка объектива | |
| Ремешок |
https://panasonic.net/cns/projector/products/vmz60/
| PT-VMW50 | |
| Projector type | LCD Projectors |
| LCD panel | |
| Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Drive method | Active matrix method |
| Pixels | 1,024,000 (1280 x 800) x 3, total of 3,072,000 pixels |
| Light source | Laser diodes |
| Light output*1 | 5,000 lm |
| Time until light output declines to 50 %*2 | 20,000 hours (NORMAL) |
| Resolution | 1280 x 800 pixels |
| (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.) | |
| Contrast ratio*1 | 3,000,000:1 (all white/all black) |
| (PICTURE MODE: DYNAMIC, DYNAMIC CONTRAST: [1]) | |
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85% |
| Lens | 1.6 x Manual zoom (Throw ratio: 1.09–1.77:1) |
| Manual focus lens, F = 1.60–2.12, f = 15.30–24.64 mm | |
| Lens shift | |
| Vertical | +44 %, 0 % (Manual) |
| (from center of screen) | |
| Horizontal | +20 %, -20 % (Manual) |
| (from center of screen) | |
| Keystone correction range | Vertical, Horizontal: ±35 ° |
| Installation | Horizontal/vertical, free 360-degree installation |
| Terminals | |
| HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), Audio Signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
| COMPUTER 1 IN | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| COMPUTER 2 IN/OUT | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching) |
| VIDEO IN | Pin jack x 1 |
| AUDIO 1/2 IN | M3 stereo mini-jack x 2 |
| AUDIO 3 IN | Pin jack (L/R) x 1 |
| VARIABLE AUDIO OUT | M3 stereo mini-jack x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2) |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection, HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input |
| USB (VIEWER/WIRELESS/DC OUT) | USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50, power supply (DC 5 V, maximum 2 A*3) |
| Power supply | AC 100 V–240 V, 50/60 Hz |
| Power consumption | 360 W |
| Built-in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter*4 | Included [Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3)] |
| Operation noise*1 | NORMAL: 37 dB, QUIET: 27 dB |
| Dimensions (W x H x D) | 399 mm x 115 mm x 348 mm (15 23/32? x 4 17/32? x 13 11/16? ) (Not including protruding parts) |
| 399 mm x 133 mm x 348 mm (15 23/32? x 5 1/4? x 13 11/16? ) (With feet at shortest position) | |
| Weight*5 | Approx. 7.2 kg (15.87 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*6 |
| Operating humidity: 20–80 % (No condensation) | |
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®, |
| Wireless Projector App for iOS/Android™ |
