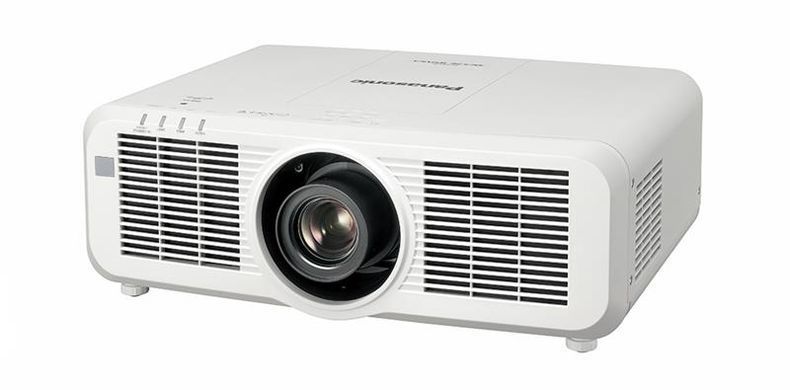

| Модель | PT-MW630 |
| Технология: | 3LCD |
| Разрешение: | 1280 × 800 (WXGA) |
| Яркость: | 6 500 Lm |
| Контраст: | 3,000,000:1 |
| Оптический трансфокатор (зум): | 1,6 x (стандартный объектив) |
| Проекционное отношение: | 1.6–2.8:1 (стандартный объектив) |
| Фокусировка: | f 26.8–45.5 мм (стандартный объектив) |
| Сдвиг линз (моторизованый): | V= ±67% H= ±35% (стандартный объектив) |
| Источник света (Вт, срок работы): | Laser Diode, 20000 часов (Нормальный режим) |
| Энергопотребление (Вт): | 505 Вт |
| Вход: | HDMI х2, RGB 1 (BNC х 5), RGB 2 (D-Sub 15 х 1), VIDEO IN (Pin jack x 1), AUDIO IN (M3 stereo jack х 2, Pin jack x 2), SERIAL IN (D-sub 9 pin, RS-232C х 1), REMOTE 1 IN (D-Sub 9 х 1), REMOTE 2 IN (M3 jack x 1), LAN (RJ-45 x 1), DIGITAL LINK / LAN (RJ-45 x 1), VIEWER / PAIRING (USB type-A × 1), Wireless module connecting terminal x 1 |
| Выход: | MONITOR OUT (D-Sub 15 х 1), VARIABLE AUDIO OUT (M3 jack х 1), DC OUT (USB type-A × 1) |
| Коррекция трапецеидальных искажений: | V= ±35° H= ±35° (стандартный объектив) |
| Шум (дБ): | 32 |
| Масса (кг): | 16.9 |
| Габариты (ШхВхГ мм): | 560 × 205 × 443 мм |
| Комплектация: | Panasonic проектор PT-MW630 (белый) |
| Пулт ДУ с батарейками | |
| Шнур питания | |
| Руководство по эксплуатации на CD | |
| Крышка объектива |
https://panasonic.net/cns/projector/products/mz670/
| PT-MW730 / MW730L / MW630 / MW630L | |
| Power supply | 100–240 V AC, 50/60 Hz |
| Power consumption | PT-MW730/MW730L: 545 W |
| PT-MW630/MW630L: 505 W | |
| LCD panel | |
| Panel size | 19.3 mm (0.76? ) diagonal (16:10 aspect ratio) |
| Display method | Transparent LCD panel (× 3, R/G/B) |
| Drive method | Active matrix |
| Pixels | 1,024,000 (1280 × 800) × 3, total of 3,072,000 pixels |
| Lens | PT-MW730/MW630: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm |
| PT-MW730L/MW630L: Optional powered zoom/focus lenses | |
| Light source | Laser diode (Class 1) (Class 3R for US models) |
| Filter | x 1, estimated maintenance time: approx. 20,000 hours*1 |
| Screen size (diagonal) | 1.02–10.16 m (40–400 in), 16:10 aspect ratio |
| 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio | |
| Brightness*2 | PT-MW730/MW730L: 8,000 lm |
| PT-MW630/MW630L: 6,500 lm | |
| Center-to-corner uniformity*2 | 90% |
| Contrast | 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2) |
| Resolution | 1280 × 800 pixels*3 |
| Optical axis shift*4*5 | |
| (from center of screen) | |
| Vertical | ±67 % (powered) (for supplied lens) |
| Horizontal | ±35 % (powered) (for supplied lens) |
| Keystone correction range*4 | Vertical: ±35°, Horizontal: ±35° (for supplied lens) |
| (Up to a total of ±55° during simultaneous horizontal and vertical correction) | |
| Installation | Horizontal/Vertical, free 360-degree installation |
| Built-in speaker | 10 W (monaural) |
| Cabinet materials | Molded plastic (PC + ABS) |
| Dimensions (W x H x D) | PT-MW730/MW630: 560 x 205*6 x 443 mm (22 1/16? x 8 1/16? *6 x 17 7/16? ) (with supplied lens) |
| PT-MW730L/MW630L: 560 x 205*6 x 428 mm (22 1/16? x 8 1/16? *6 x 16 27/32? ) (without lens) | |
| Weight*7 | PT-MW730: Approximately 17.1 kg (37.7 lbs) (with supplied lens) |
| PT-MW730L: Approximately 16.2 kg (35.7 lbs) (without lens) | |
| PT-MW630: Approximately 16.9 kg (37.3 lbs) (with supplied lens) | |
| PT-MW630L: Approximately 16.1 kg (35.5 lbs) (without lens) | |
| Operating noise*2 | PT-MW730/MW730L: 35 dB (Normal/ECO Mode), 28 dB (Quiet Mode) |
| PT-MW630/MW630L: 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode) | |
| Operating environment | Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*8, operating humidity: 20 %–80 % (no condensation) |
| Applicable software/application | Logo Transfer Software, Multi Monitoring & Control Software, Wireless Manager ME, Plug and Share, Smart Projector Control App, Wireless Projector App |
| Supplied accessories | Power cord with power cord holder*9, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual) |
