* Поставляется без объектива!
| Модель | PT-RZ21K |
| Технология: | 3-Chip DLP |
| Разрешение: | 1920 x 1200 (WUXGA) |
| Яркость: | 20 000 Lm |
| Контраст: | 20,000:1 |
| Оптический трансфокатор (зум): | В зависимости от объектива (от 1,6х до 1,9х) |
| Проекционное отношение: | В зависимости от объектива |
| Фокусировка: | В зависимости от объектива |
| Сдвиг линз (моторизованный): | В зависимости от объектива |
| Источник света (Вт, срок работы): | Laser Diode, 20000 часов (Нормальный режим) |
| Энергопотребление (Вт): | 1510 Вт |
| Вход: | RGB1 (BNC x 5), RGB2 (D-sub HD 15-pin x 1), DVI-D (DVI-D 24-pin ×1), HDMI x 1, SDI (BNC x 2), 3D SYNC1/MULTI PROJECTOR SYNC (BNC x 1), SERIAL (D-sub 9 pin x 1), REMOTE 1 (M3 stereo mini jack × 1), REMOTE 2 (D-sub 9 pin × 1), DIGITAL LINK/LAN (RJ-45 x 1) |
| Выход: | MULTI PROJECTOR SYNC (BNC x 1), SERIAL (D-sub 9 pin x 1), REMOTE 1 (M3 stereo mini jack × 1), DC OUT 5V (USB connector (type A) x 2 for power supply only) |
| Коррекция трапецеидальных искажений: | В зависимости от объектива |
| Шум (дБ): | 46 |
| Масса (кг): | 49 |
| Габариты (ШхВхГ мм): | 598 × 270 × 725 мм |

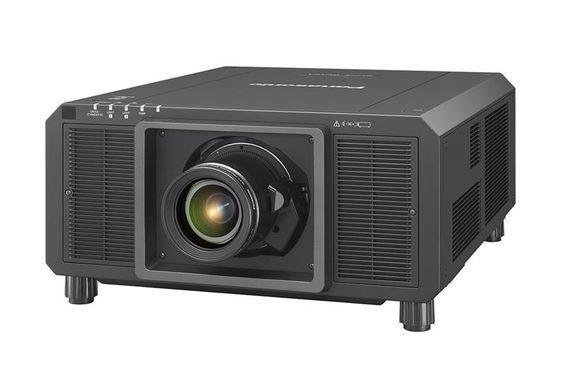

| Комплектация: | Panasonic проектор PT-RZ21K (черный) |
| Пулт ДУ с батарейками | |
| Шнур питания | |
| Крышка отверстия линзы | |
| Руководство по эксплуатации на CD | |
| Винт крепления объектива |
https://panasonic.net/cns/projector/products/rz21k/
| PT-RZ21K | |
| Power supply | AC 200 V–240 V, 7.7 A, 50/60 Hz |
| (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.6 A].) | |
| Power consumption | 1,510 W (0.3 W with Standby Mode set to ECO*1, 4 W with Standby Mode set to NORMAL) |
| DLP™ chip | |
| Panel size | 24.4 mm (0.96 in) |
| diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 3, DLP™ projection system |
| Pixels | 6,912,000 (1920 x 1200 x 3) pixels |
| Refresh Rate | 120 Hz*2 |
| Lens | Optional (no lens included with this model) |
| Light source | Laser Diode (Laser class: Class 1)(Class 3R for US models), Light source life: 20,000 hours (NORMAL Mode, brightness decreases to approx. 50 %) / 24,000 hours (ECO Mode, brightness decreases to approx. 50 %) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000 in) |
| with 16:10 aspect ratio | |
| 1.78–15.24 m (70–600 in) | |
| with the ET-D75LE8, 16:10 aspect ratio | |
| 3.05–15.24 m (120–600 in) | |
| with the ET-D75LE95, 16:10 aspect ratio | |
| Brightness | 21,000 lm (Center)*3 / 20,000 lm*4 |
| Center-to-corner uniformity | 90% |
| Contrast | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1920 x 1200 pixels |
| RGB | fH: 15−100 kHz, fV: 24−120 Hz, dot clock: 162 MHz or less |
| Video/YC | fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), |
| fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM) | |
| Optical axis shift*5 | |
| (from center of screen) | |
| Vertical | ±55 % (±44 % with ET-D75LE6, +68 – +78 % with ET-D75LE95) (powered) |
| Horizontal | ±20 % (±15 % with ET-D75LE6, ±12 % with ET-D75LE95) (powered) |
| Keystone correction range | Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6), |
| Horizontal: ±15° | |
| Keystone correction range with | Vertical: ±45° (± 40° with ET-D75LE10/20, |
| optional upgrade kit (ET-UK20) | ±22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±40° (±15° with ET-D75LE50/6), |
| Up to a total of ±55° during simultaneous horizontal and vertical correction | |
| Installation | Horizontal/vertical, free 360-degree installation |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | 598 × 270 × 725 mm (23 17/32? x 10 5/8? x 28 17/32?) (not including protruding parts) |
| Weight | 49.0 kg (108 lbs) |
| Operation noise*4 | 46 dB |
| Operating environment | Operating temperature: 0–50 °C (32–122 °F)*6; Operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, |
| Geometry Manager Pro Software (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Upgrade Kit), Smart Projector Control |
