* Поставляется без объектива!

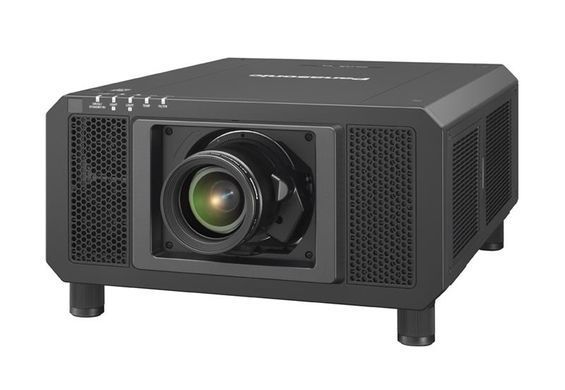

| Модель | PT-RQ13K |
| Технология: | 3-Chip DLP |
| Разрешение: | 4K+ (5120 x 3200) (QUAD PIXEL DRIVE: ON) |
| Яркость: | 10 000 Lm |
| Контраст: | 20,000:1 |
| Оптический трансфокатор (зум): | В зависимости от объектива (от 1,6х до 1,9х) |
| Проекционное отношение: | В зависимости от объектива |
| Фокусировка: | В зависимости от объектива |
| Сдвиг линз (моторизованный): | В зависимости от объектива |
| Источник света (Вт, срок работы): | Laser Diode, 20000 часов (Нормальный режим) |
| Энергопотребление (Вт): | 1270 Вт |
| Вход: | SDI IN 1 (BNC x1), SDI IN 2 (BNC x 1), SDI IN 3 (BNC x 1), SDI IN 4 (BNC x 1), Frame Sync IN (BNC x 1), DIGITAL LINK/LAN (RJ-45 x 1), SERIAL (D-sub 9 pin × 1), REMOTE 1 (M3 stereo mini jack × 1), REMOTE 2 (D-sub 9 pin × 1), Слот для установки интерфейсной платы (опционально) х 2. Дополнительные входы при установке плат: HDMI , DVI-D , 3G-SDI, 12G-SDI) |
| Выход: | Frame Sync (BNC x 1), SERIAL (D-sub 9 pin x 1), REMOTE 1 (M3 stereo mini jack × 1), Дополнительные выходы при установке плат: 3G-SDI |
| Коррекция трапецеидальных искажений: | В зависимости от объектива |
| Шум (дБ): | 46 |
| Масса (кг): | 49 |
| Габариты (ШхВхГ мм): | 578 × 270 × 725 мм |
| Комплектация: | Panasonic проектор PT-RQ13K (черный) |
| Пулт ДУ с батарейками | |
| Шнур питания | |
| Крышка отверстия линзы | |
| Руководство по эксплуатации на CD | |
| Винт крепления объектива |
https://panasonic.net/cns/projector/products/rq13k/
| PT-RQ13K | |
| Power supply | 100–240 V AC, 50/60 Hz |
| Power consumption*1 | 1,270 W (0.3 W with Standby Mode set to Eco*1, 4 W with Standby Mode set to Normal); |
| Average power consumption: 913 W (Normal Mode), 782 W (Eco Mode), 531–732 W (Long Life 1 Mode), 477–702 W (Long Life 2 Mode),423–665 W (Long Life 3 Mode) [Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), ICE627087: 2008 Broadcast content, Picture Mode: Dynamic, Dynamic Contrast Mode: 3] | |
| DLP™ chip | |
| Panel size | 22.9 mm (0.9?) |
| diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 3, DLP™ projection system |
| Pixels | 4,096,000 (2560 x 1600) x 3, total of 12,288,000 pixels when Quad Pixel Drive set to OFF, 49152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON |
| Refresh rate | 240 Hz*2 |
| Lens | Optional (no lens included with this model) |
| Light source | Laser diode (Class 1) (Class 3R for US models), |
| Light-source life*3: | |
| 20,000 hours (Normal Mode), | |
| 24,000 hours (Eco Mode) | |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000?), |
| 1.78–15.24 m (70–600?) with ET-D75LE8, | |
| 3.05–15.24 m (120–600?) with ET-D75LE90, | |
| 16:10 aspect ratio | |
| Brightness*4 | 10,000 lm |
| Contrast*4 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 5120 x 3200 pixels (Quad Pixel Drive: ON) |
| Supported RGB signal | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i, 4K |
| Optical axis shift*5 | |
| (from center of screen) | |
| Vertical | ±59 % (±44 % with the ET-D75LE6, +74 – +84 % with the ET-D75LE90) (powered) |
| Horizontal | ±29 % (±19 % with the ET-D75LE6, -12 – +16 % with the ET-D75LE90) (powered) |
| Keystone correction range*6 | Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90) |
| Keystone correction range with optional Upgrade Kit ET-UK20*6 | Vertical: ±45° (±40° with ET-D75LE10/D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE6/D75LE10/D75LE50, ±20° with ET-D75LE20, ±25° with ET-D75LE30, ±30° with ET-D75LE40, ±40° with ET-D75LE8, 0° with ET-D75LE90), Up to a total of ±30° during simultaneous horizontal and vertical correction. |
| Installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | 578 x 270 x 725 mm (22 3/4? x 10 5/8? x 28 17/32?) (optional lens, legs and lens cover not included); 578 x 323.5 x 740 mm (22 3/4? x 12 23/32? x 29 1/8?) (Including legs at shortest position and protruding parts) |
| Weight*7 | Approx. 49.0 kg (108 lbs) (optional lens not included) |
| Operation noise*4 | 46 dB |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*8, |
| operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, |
| Multi Monitoring & Control Software, | |
| Early Warning Software, | |
| Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit) |
