| Модель | PT-RW930 |
| Технология: | 1-Chip DLP |
| Разрешение: | 1280 × 800 (WXGA) |
| Яркость: | 9 400 Lm |
| Контраст: | 10,000:1 |
| Оптический трансфокатор (зум): | 1,4 x (стандартный объектив) |
| Проекционное отношение: | 1.71–2.41:1 (стандартный объектив) |
| Фокусировка: | f 25.6–35.7 мм |
| Сдвиг линз (моторизованный): | V= +60%, -16% H= +30%, -10% (стандартный объектив) |
| Источник света (Вт, срок работы): | Laser Diode, 20000 часов (Нормальный режим) |
| Энергопотребление (Вт): | 1050 Вт |
| Вход: | HDMI x 1, DVI-D (DVI-D 24-pin ×1), RGB1 (BNC x 5), RGB2 (D-sub HD 15-pin x 1), SERIAL/MULTI PROJECTOR SYNC (D-sub 9 pin x 1), REMOTE 1 (M3 stereo mini jack × 1), REMOTE 2 (D-sub 9 pin × 1), DIGITAL LINK/LAN (RJ-45 x 1) |
| Выход: | SERIAL/MULTI PROJECTOR SYNC (D-sub 9 pin x 1), REMOTE 1 (M3 stereo mini jack × 1) |
| Коррекция трапецеидальных искажений: | V= ±40° H= ±15° |
| Шум (дБ): | 41 |
| Масса (кг): | 23.2 |
| Габариты (ШхВхГ мм): | 498 x 200 x 581 мм |

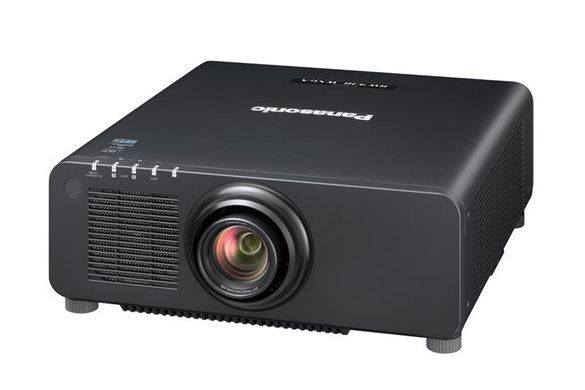

| Комплектация: | Panasonic проектор PT-RW930 (черный/белый) |
| Пулт ДУ с батарейками | |
| Шнур питания | |
| Руководство по эксплуатации на CD | |
| Крышка оправы объектива | |
| Крышка объектива |
https://panasonic.net/cns/projector/products/rz970/
| PT-RW930/RW930L | |
| Power supply | 100–240 V AC, 10.4–5.0 A, 50/60 Hz |
| Power consumption*1 | 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 742 W (Normal Mode), 617 W (Eco Mode), 410–588 W (Long Life 1 Mode), 375–588 W (Long Life 2 Mode), 349–588 W (Long Life 3 Mode), 82 W (Shutter Mode) |
| DLP™ chip | |
| Panel size | 16.5 mm (0.65?) diagonal (16:10 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system |
| Pixels | 1,024,000 (1280 x 800) pixels |
| Lens | |
| PT-RZ970/RZ870/RW930 | Powered zoom (throw ratio 1.8-2.5:1), powered focus, F 1.7-1.9, f 25.6-35.7 mm |
| PT-RZ970L/RZ870L/RW930L | Optional powered zoom/focus and fixed-focus lens |
| Light source | Laser diodes (Class 1) (Class 3R for US models), light source life*2: 20,000 hours (Normal Mode*) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m3, Dynamic Contrast Mode: 3] |
| *Includes Quiet 1/Quiet 2 Mode. | |
| Screen size (diagonal) | 1.27–15.24 m (50–600?), 1.27–5.08 m (50–200?) with ET-DLE055, 2.54–8.89 m (100–350?) with ET-DLE030, 16:10 aspect ratio |
| Brightness | 10,000 lm (Center)*3 / 9,400 lm*2 / 8,000 lm (Quiet 1)*2 / 6,000 lm (Quiet 2)*2 |
| Contrast*2 | 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1280 x 800 pixels (Input signals that exceed supported resolution will be converted.) |
| Supported RGB signal | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Optical axis shift*4 | |
| (from center of screen) | |
| Vertical | +60 %, -16 % (powered) |
| Horizontal | +30 %, -10 % (+28 %, -10 % with the ET-DLE085/DLE105) (powered) |
| Keystone correction range*5 | Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030) |
| Keystone correction range with optional Upgrade Kit ET-UK20*5 | – |
| Installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | |
| PT-RZ970/RZ870/RW930 | 498 x 200*6 x 581 mm (19 19/32? x 7 7/8?*6 x 22 7/8?) (with supplied lens [DLE170]) |
| PT-RZ970L/RZ870L/RW930L | 498 x 200*6 x 538 mm (19 19/32? x 7 7/8?*6 x 21 3/16?) (without lens) |
| Weight*7 | |
| PT-RZ970/RZ870/RW930 | Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170]) |
| PT-RZ970L/RZ870L/RW930L | Approximately 22.4 kg (49.4 lbs) (without lens) |
| Operation noise*2 | 41 dB (37 dB [Quiet1] / 35 dB [Quiet2]) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*8, |
| operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software |
