* Поставляется без оюъектива!

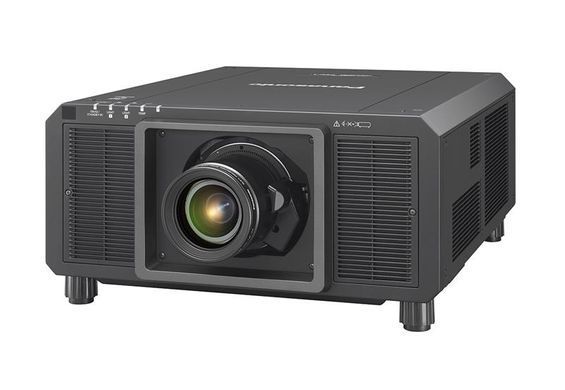

| Модель | PT-RQ22K |
| Технология: | 3-Chip DLP |
| Разрешение: | 4K+ (5120 x 3200) (QUAD PIXEL DRIVE: ON) |
| Яркость: | 20 000 Lm |
| Контраст: | 20,000:1 |
| Оптический трансфокатор (зум): | В зависимости от объектива (от 1,6х до 1,9х) |
| Проекционное отношение: | В зависимости от объектива |
| Фокусировка: | В зависимости от объектива |
| Сдвиг линз (моторизованный): | В зависимости от объектива |
| Источник света (Вт, срок работы): | Laser Diode, 20000 часов (Нормальный режим) |
| Энергопотребление (Вт): | 1650 Вт |
| Вход: | SDI IN 1 (BNC x1), SDI IN 2 (BNC x 1), SDI IN 3 (BNC x 1), SDI IN 4 (BNC x 1), DIGITAL LINK/LAN (RJ-45 x 1), MULTI PROJECTOR SYNC IN (BNC x 1), SERIAL (D-sub 9 pin × 1), REMOTE 1 (M3 stereo mini jack × 1), REMOTE 2 (D-sub 9 pin × 1), Слот для установки интерфейсной платы (опционально) х 2. Дополнительные входы при установке плат: HDMI , DVI-D , 3G-SDI, 12G-SDI, Displayport) |
| Выход: | MULTI PROJECTOR SYNC (BNC x 1), SERIAL (D-sub 9 pin x 1), REMOTE 1 (M3 stereo mini jack × 1), DC OUT 5V (USB connector (type A) x 2 for power supply only), Дополнительные выходы при установке плат: 3G-SDI |
| Коррекция трапецеидальных искажений: | В зависимости от объектива |
| Шум (дБ): | 46 |
| Масса (кг): | 54 |
| Габариты (ШхВхГ мм): | 598 × 270 × 725 мм |
| Комплектация: | Panasonic проектор PT-RQ22K (черный) |
| Пулт ДУ с батарейками | |
| Шнур питания | |
| Крышка отверстия линзы | |
| Руководство по эксплуатации на CD | |
| Винт крепления объектива |
https://panasonic.net/cns/projector/products/rq22k/
| PT-RQ22K | |
| Projector type | 3-Chip DLP™ projector |
| DLP™ chip | |
| Panel size | 22.9 mm (0.9 in) diagonal (16:10 aspect ratio) |
| Display method | DLP™ chip x 3 |
| Pixels | 4,096,000 (2560 × 1600) × 3, total of 12,288,000 pixels, |
| 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON | |
| Refresh rate | 240 Hz*1 |
| Light source | Laser Diode |
| Light output | 20,000 lm*2 / 21,000 lm (Center)*3 |
| Time until light output declines to 50 %*4 | 20,000 hours (NORMAL) /24,000 hours (ECO) |
| Resolution | 4K+ (5120 x 3200 pixels) (Quad Pixel Drive: ON) |
| Contrast*2 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000 in) with 16:10 aspect ratio |
| 1.78–15.24 m (70–600 in) with the ET-D75LE8 / ET-D3LET80, 16:10 aspect ratio | |
| 3.05–15.24 m (120–600 in) with the ET-D75LE95, 16:10 aspect ratio | |
| Center-to-corner uniformity*2 | 90% |
| Lens | Optional (no lens included with this model) |
| Lens shift*5 | |
| Vertical | ±59 % (±56 % with ET-D75LE6 / ET-D3LEW60, +69 % – +84 % with ET-D75LE95) (powered) |
| (from center of screen) | |
| Horizontal | ±29 % (±19 % with ET-D75LE6 / ET-D3LEW60, ±21 % with ET-D75LE95) (powered) |
| (from center of screen) | |
| Keystone correction range | Vertical: ±40° (± 22° with ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95), |
| Horizontal: ±15° (0° with ET-D75LE95) | |
| Keystone correction range with optional | Vertical: ±45° (± 40° with ET-D75LE10 / ET-D3LEW10, ET-D75LE20 / ET-D3LES20, ±22° with ET-D3LEW50, |
| ET-UK20 Upgrade Kit | ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95) |
| Horizontal: ±40° (±15° with ET-D3LEW50, ET-D75LE6 / ET-D3LEW60, 0° with ET-D75LE95), | |
| When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°. | |
| Installation | Horizontal/vertical, free 360-degree installation |
| Terminals | |
| SDI 1 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), |
| Quad-link HD-SDI (Link 1), Quad-link 3G-SDI (Link 1) | |
| SDI 2 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link B), Dual-link 3G-SDI (Link 2), |
| Quad-link HD-SDI (Link 2), Quad-link 3G-SDI (Link 2) | |
| SDI 3 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), |
| Quad-link HD-SDI (Link 3), Quad-link 3G-SDI (Link 3) | |
| SDI 4 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link B), Dual-link 3G-SDI (Link 2), |
| Quad-link HD-SDI (Link 4), Quad-link 3G-SDI (Link 4) | |
| MULTI PROJECTOR SYNC IN | BNC x 1 |
| MULTI PROJECTOR SYNC OUT | BNC x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control |
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| DIGITAL LINK/LAN | RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), |
| 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2 | |
| DC OUT | USB Type A x 2 (for power supply DC 5 V total of 2 A) |
| Expansion Slot | SLOT 1 / SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible |
| Power supply | AC 200 V–240 V, 8.5 A, 50/60 Hz |
| (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.8A]) | |
| Power consumption | 1,650 W (0.3 W with Standby Mode set to ECO*6, 4 W with Standby Mode set to NORMAL) |
| Cabinet materials | Molded plastic |
| Operation noise*2 | 46 dB |
| Dimensions (W x H x D) | 600 mm x 307 mm*7 x 745 mm ( 23 5/8? x 12 3/32? x 29 11/32? ) ( including protruding parts ); |
| 598 mm x 270 mm*8 x 725 mm ( 23 17/32? x 10 5/8? x 28 17/32? ) ( not including protruding parts ) | |
| Weight*9 | 54.0 kg (119 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*10, operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ |
